160A LT Distribution Panel (4-Way)
Compact 160A LT distribution panel ideal for smaller industrial facilities and commercial buildings. Features integrated protection and easy maintenance design.
Ref. LTP-160-4W · Lead time 2–3 weeks · Made to order from Hapur
See full engineering specification & variants
Key Features
Recommended For
Specifications
| Specification | Value |
|---|---|
| Main Rating | 160A |
| Branch Ways | 4 ways |
| Input Voltage | 415V, 3-Phase, 4-Wire |
| Frequency | 50/60 Hz |
| Enclosure Type | IP54 |
| Material | Mild Steel (powder coated) |
| Weight | 200 kg |
| Warranty | 2 years |
Reading the specification
What these numbers mean for your installation
A datasheet tells you what the unit does. This is what each figure changes about how you specify, feed and site it — worked out for the ~80 kVA specifically, not the range in general.
115 kVA
A 160 A incomer on a 415 V three-phase supply carries about 115 kVA at full rating. We list this panel at ~80 kVA because continuous loading is normally held well below the breaker rating — the difference is your diversity and future-expansion margin.
4 ways
4 ways of protected outgoing feeders. Allow one spare way at commissioning: adding a feeder later means de-energising the whole board, and on a working shop floor that shutdown usually costs more than the extra way did.
IP54
IP54 is dust-protected and rated against splashing water from any direction — an indoor plant room or a sheltered outdoor position. A fully exposed outdoor location, or a washdown area in food or pharma, needs a higher rating and a canopy; tell us the mounting position and we will build to suit.
Sizing Guide
When is a 160A board the right size?
160 A is the smallest board that makes sense for a three-phase industrial connection. It suits a sanctioned load of roughly 80–100 kVA — a small fabrication unit running two or three machines, the main distribution board of a commercial building, or a school block. Four outgoing ways is enough for a site with a clean division of load: machines, lighting and sockets, HVAC, and one spare. If you are already planning a fifth circuit, order the 400 A six-way board instead — adding a way later means de-energising the entire board, and on a working floor that shutdown usually costs more than the extra way would have. At 200 kg it needs no special handling equipment to place.
Before you order
Where a 160A board goes in, and what the site needs
Typical installations
We supply ~80 kVA most often into small industrial units, commercial buildings, educational institutions and healthcare facilities, alongside retail outlets and small manufacturing units. What separates those sites is how the outgoing ways get allocated. Two boards of this rating can look identical on the schedule and behave completely differently depending on whether one feeder carries most of the load or the demand is spread evenly across them.
Site preparation
At 200 kg two people and a pallet truck will position this. The practical constraint is the doorway and any step or threshold on the route, not the weight itself. Leave working clearance on the terminal side for cable entry and inspection. Sustained ambient above 45 °C, or an enclosed room without cross-ventilation, requires derating — send us the room conditions and we will confirm the rating still holds where you intend to put it.
Adjacent ratings
If a 160A board is not the right size
Sizing rarely lands exactly on a catalogue rating first time. These are the ratings either side of it in the same range — compare the specification before you commit.
400A LT Distribution Panel (6-Way)
Low-tension distribution panel with 400A main capacity and 6-way branch circuits.
View specificationLT Panel630A LT Distribution Panel (8-Way)
High-capacity 630A LT panel with 8-way distribution for large installations.
View specificationAlso in the panel range
Different equipment rather than a different size — often specified alongside this on the same project.
100 kVAr APFC Panel
Mid-range APFC panel for 100 kVAr reactive power compensation.
View specificationAPFC Panel50 kVAr APFC Panel

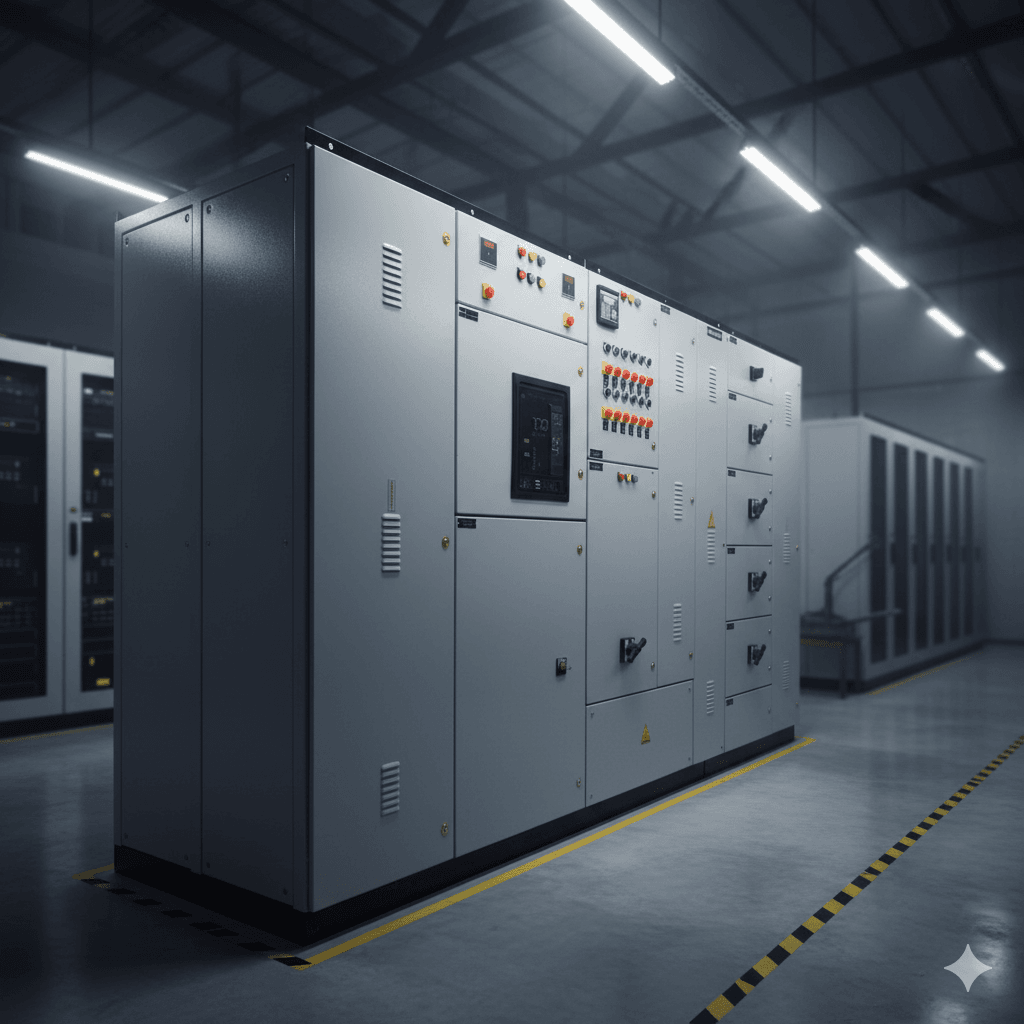

Automatic power factor correction panel for 50 kVAr reactive power compensation.
View specificationAPFC Panel200 kVAr APFC Panel
Industrial-grade APFC panel for large power factor correction (200 kVAr).
View specificationEngineering detail on this configuration
The lt panel pages carry the full design rationale, comparison tables and application notes behind this SKU.
Ready to specify?
Share your load profile. Get a firm proposal in 24 hours.
Send us your kVA requirement, supply voltage range, and site conditions. Our engineer will confirm whether this configuration is correct for your installation, or specify an alternative if needed. No distributors — direct from our factory in Hapur.
Submit load requirements
