Why Our Factory's Machines Kept Tripping — And What a 500 kVA Servo Stabilizer Fixed

The Problem: Machines Tripping Every Shift, No Clear Cause

When a production facility contacts us about machine tripping, the first thing we ask is how long it has been happening. In this case, the answer was: almost two years.

The facility — a heavy manufacturing plant running three production shifts across multiple lines — had been dealing with machine trips for long enough that the maintenance team had begun treating them as normal. Machines would fault mid-cycle. Operators would reset them. Production would resume. An hour later, the same machine or another one on the same feeder would trip again. The pattern repeated across the day, across the week, across the seasons.

In two years, the plant had replaced multiple drive boards across three different machines. They had called in the OEM service teams for two of the machines. They had upgraded their internal wiring at significant cost. Each intervention produced a brief improvement followed by a return of the same problems. Nobody had yet looked at the power supply feeding every machine on every line simultaneously — the one common factor in every single fault.

When they called us, they were not looking for a stabilizer. They were looking for an explanation. We told them we would provide both — but we needed to measure the power first before we recommended anything.

The Measurement: What the Data Showed After One Week of Logging

We asked the plant's electrical team to install a power quality logger at the main incoming distribution panel and run it across five full production days — covering day shift, evening shift, and the transition periods between them. The transition periods between shifts are often the most revealing, because that is when machines are starting simultaneously across the entire facility.

What the logger recorded:

During shift changeover — approximately 06:30 and 14:30 each day — incoming three-phase voltage dropped consistently. The worst measurements showed Phase B reaching 361V against a 415V nominal supply. That is a 13% undervoltage condition. The drives on the production lines specify input tolerance of ±10%. Phase B was routinely operating 3% outside the lower limit of what the drives are designed to handle.

Phase-to-phase imbalance was significant throughout both production shifts. The difference between the highest and lowest phase voltage reached 34V at peak — a 8.2% imbalance across the three phases. Three-phase motors running under this level of phase imbalance draw unbalanced current across their windings. The winding that draws the highest current runs hot. Over time, that winding's insulation degrades. Eventually the winding fails — and the drive trips on overcurrent before the winding can short.

Voltage spikes were recorded on 11 separate occasions across the five-day logging period. These transient events — caused by large motors on the same grid feeder switching off suddenly — reached up to 487V instantaneously. While each spike lasted only milliseconds, the IGBT modules in variable frequency drives are sensitive to transient overvoltage. Repeated exposure shortens their operational life even when no single spike is high enough to cause immediate failure.

The data told a complete story. The machines were not failing. They were protecting themselves from a power supply that was outside their specified operating range for significant portions of every shift. The drive boards that had been replaced were not faulty. They were damaged by operating outside their input specification continuously for months before failing.

The Specification: What This Installation Required

Based on the power quality data and a full load survey of the facility, we prepared the following specification:

Load assessment summary:

The facility was running the following equipment simultaneously across peak production:

• Heavy production line motors: combined running load 185 kW, peak starting demand 340 kW
• CNC and precision machining equipment: 65 kW running, 120 kW starting demand
• Hydraulic power packs across three lines: 48 kW combined
• Conveyor and material handling systems: 32 kW
• HVAC and auxiliary systems: 55 kW
• Control systems, lighting, office: 28 kW
• Total simultaneous peak demand including starting currents: 413 kVA

Why 500 kVA was specified, not 413 kVA:

We size stabilizers with a minimum 20% thermal headroom above calculated peak demand. This headroom accounts for: ambient temperature variation across seasons (the facility's production area reached 44°C in summer), the degradation in thermal capacity that occurs naturally over years of operation, and any additional equipment the facility might add to the same distribution circuit in future.

413 kVA × 1.20 = 495 kVA → rounded to the standard 500 kVA build.

A stabilizer running continuously at 99% of rated capacity in Indian ambient conditions will not deliver its rated performance at year five or year eight. One sized correctly delivers consistent performance across its full operational life.

| Specification | Value | |---|---| | Capacity | 500 kVA | | Phase configuration | Three phase, independent phase control | | Input voltage range | 300V – 470V per phase | | Output voltage | 415V ±1% per phase | | Response time | Under 20 milliseconds | | Cooling | Oil cooled — continuous heavy duty | | Bypass provision | Manual bypass switch included | | Certifications | IS 9815, ISO 9001:2015, NABL tested | | Enclosure | IP44 | | Warranty | 2 years comprehensive |

What We Built and the Design Choices That Mattered

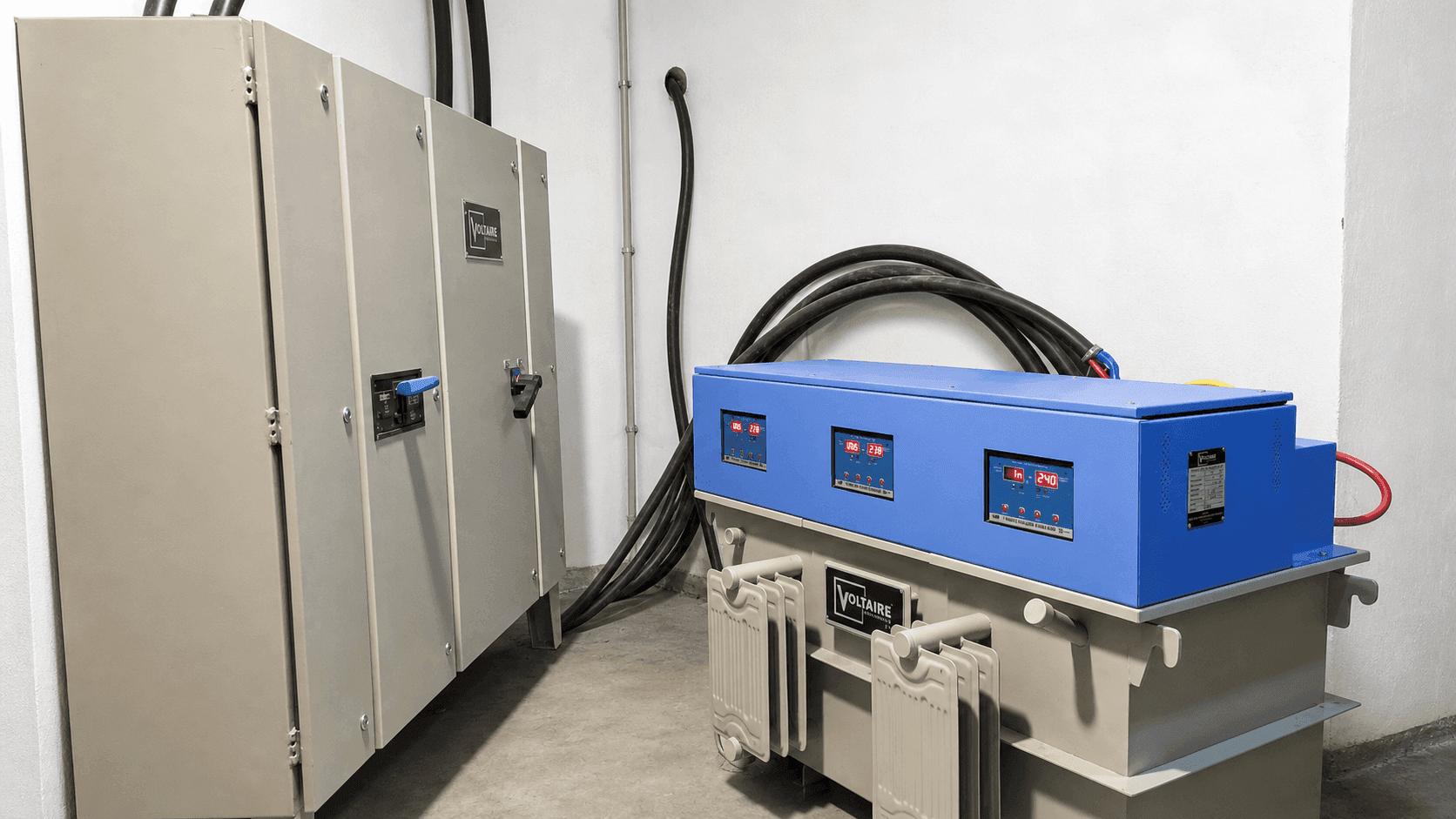

The 500 kVA unit was manufactured at our Hapur facility over a five-week build period. Three specific design decisions were made for this application:

Independent phase control — one servo loop per phase

The power quality data showed that the voltage problem was not uniform across all three phases. Phase B was consistently the worst during morning startup. Phase R showed the highest transient spikes during afternoon production. A common-control three-phase stabilizer applies a single averaged correction to all three phases simultaneously. When the phases are varying at different rates and by different amounts — which is the normal condition in Indian industrial estates — this averaged correction leaves individual phases outside specification even when the average is within the target range.

Independent phase control means each phase has its own servo motor, its own variac, and its own control circuit measuring and correcting that phase independently. When Phase B drops to 361V at shift changeover, the Phase B servo corrects to 415V. Phase R and Phase Y continue regulating independently based on their own conditions. This is the only configuration that genuinely addresses phase imbalance — not just total voltage variation.

Oil cooling for continuous heavy-duty operation

The facility runs three shifts. The stabilizer would be operating at 70% to 85% of rated load continuously, in an ambient environment reaching 44°C in summer. Air cooling in these conditions would require the unit to run at the upper edge of its thermal design range continuously — leaving no margin for the startup current events that cause peak thermal stress. Oil cooling in a sealed IP44 enclosure maintains component temperatures within design limits regardless of ambient temperature and regardless of how many simultaneous motor starts occur across the production floor.

Oversized copper-wound transformer core

For high-inrush applications — facilities with large motors starting regularly — we build the transformer core with additional copper cross-section beyond the minimum required for rated continuous duty. This additional copper reduces winding resistance, which reduces the resistive voltage drop during inrush events. The output voltage during a peak motor start-up stays closer to the 415V set point than it would with a standard-section transformer. For a facility whose primary complaint was voltage sags during machine startups, this design choice directly addresses the root cause.

The completed unit was load-tested at our Hapur facility under simulated three-phase load conditions, including simulated inrush events, before dispatch. The NABL test report was generated during this testing process.

The Outcome: What the Plant Looked Like Three Months Later

The stabilizer was commissioned on a Tuesday morning, brought online at the start of the day shift. The plant's electrical team had installed a second power quality logger on the output side of the stabilizer so the plant manager could see, in real time, what the regulated supply looked like compared to the unregulated supply they had been running on.

The first week:

Machine trips across all three production lines: zero. The shift changeover periods — historically the highest-risk time for equipment faults — passed without incident from the first day. The plant's maintenance supervisor noted that the morning startup sequence, which had previously required someone physically present at the main distribution board to respond to trip events, now ran without supervision.

The output voltage logger showed regulated supply maintaining 413V to 417V across all three phases throughout both production shifts — within ±0.5% of the 415V set point in most readings, well within the ±1% specification.

The first month:

Zero drive fault events across all production lines. Zero machine trips attributable to electrical causes. The maintenance team's fault log — which had typically recorded four to eight electrical-related entries per week — recorded none in the first month.

The plant manager ran the numbers on drive board replacement costs over the previous two years. Including parts, labour, and OEM service call charges, the facility had spent approximately ₹18.4 lakh on electrical fault remediation that had not solved the underlying problem. The cost of the 500 kVA stabilizer installation was recovered within the first four months of operation based on direct maintenance cost savings alone — before accounting for production time recovered from eliminated downtime.

Three months post-installation:

The second power quality log from the stabilizer output was reviewed at the three-month mark. Output voltage had remained within specification continuously across the full three months. No drive boards had been replaced. No OEM service calls had been made. The facility had run continuously across all three shifts without a single electrical fault event.

The plant manager's assessment: "We spent two years fixing machines. The machines were never broken."

If Your Factory Machines Are Tripping — Read This Before You Replace Another Drive Board

The pattern in this case study repeats across Indian manufacturing facilities more often than most plant managers realise. Machines trip. Drives get replaced. The machine runs for a few weeks. The problem returns. The OEM service team attributes it to "electrical disturbance" and leaves. A new drive board gets ordered.

The drive board is not the problem. The drive board is the victim.

Every drive trip event on a machine running outside its specified input voltage range is the drive protecting itself from operating in conditions it was not designed for. The drive manufacturer does not warranty against voltage-related damage — check your service agreement. Every board replaced under those conditions is money spent treating a symptom, not the cause.

The fastest way to find out if voltage is your problem:

Install a power quality logger at your main distribution panel for five working days. Run it across full shifts including shift changeover periods. If you see voltage below 385V or above 445V at any point during production, or phase imbalance greater than 15V between any two phases, your power supply is operating outside the tolerance of your industrial equipment.

We conduct power quality assessments as part of our inquiry process. If you are experiencing recurring machine trips, drive faults, or unexplained production interruptions — describe what you are seeing and we will tell you whether the power supply is the cause and what specification of stabilizer will fix it.

We measure before we recommend. We specify before we quote. We build for your load, not from a catalogue.
