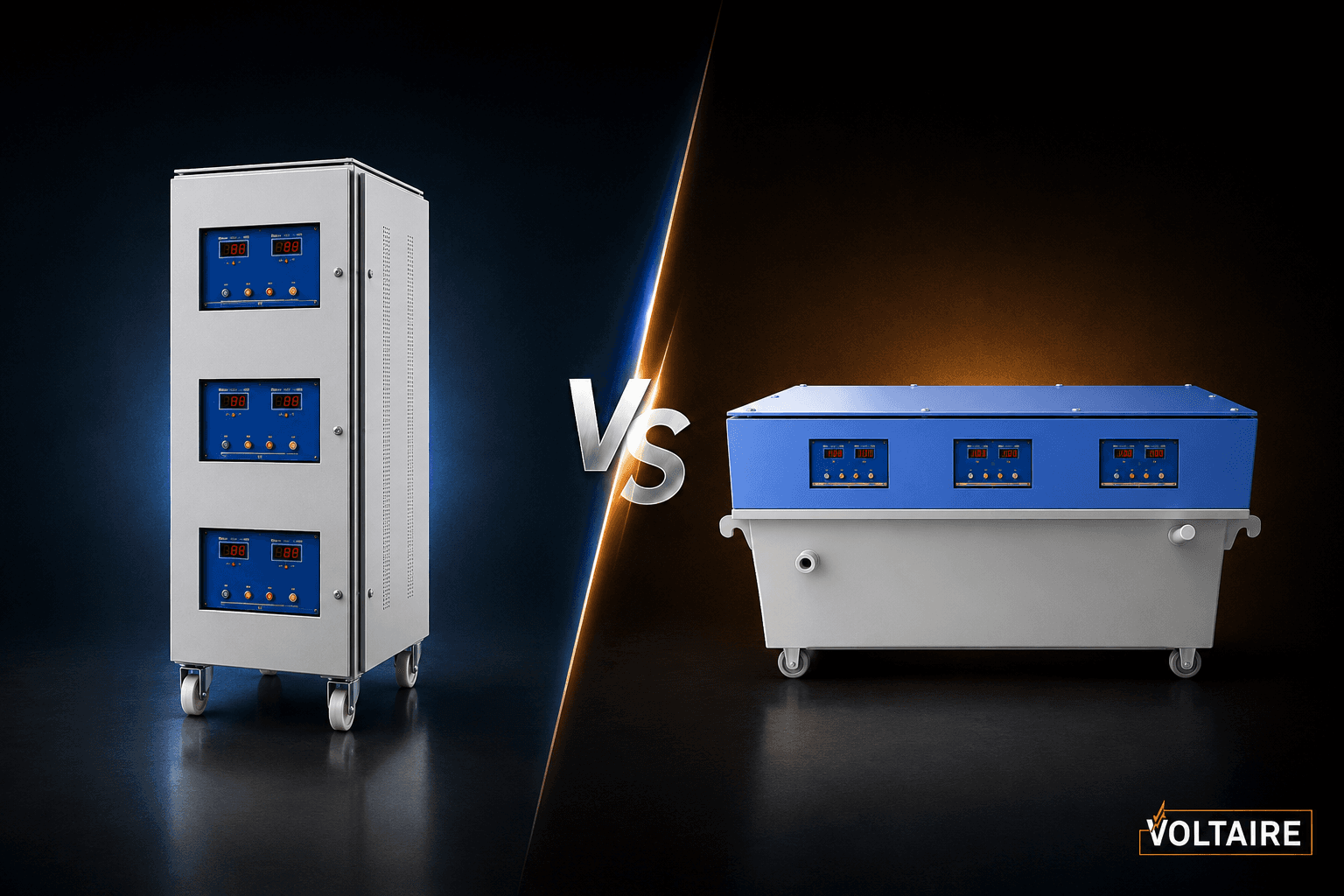

Most factories get this choice wrong — and end up with a stabilizer that underperforms or fails early. Oil cooled and air cooled servo stabilizers are not interchangeable. Here is exactly when to specify each, and what happens when you get it wrong.
The Question Every Factory Owner Eventually Asks
When a factory manager asks us for a servo stabilizer quote, one of the first questions we ask back is: what is the ambient temperature in your installation location, and how many hours a day will the unit be running at significant load?
The answer to those two questions — more than the kVA rating, more than the input voltage range, more than anything else — determines whether you should be buying an air cooled or an oil cooled servo stabilizer.
Get this choice right, and your stabilizer runs reliably for ten to fifteen years. Get it wrong, and you're looking at degraded performance within two years and a replacement unit within four or five.
Here is exactly how to make the right call for your application.
What the Cooling Type Actually Does
A servo stabilizer generates heat during operation — primarily in the transformer core and windings, and secondarily in the servo motor and control components. How that heat is managed determines how long the unit lasts and how well it performs under load.
Air cooled units use ventilation fans and grilles to draw ambient air across the transformer and dissipate heat directly into the surrounding environment. This works well when the ambient temperature is moderate, the airflow around the unit is adequate, and the load is not sustained at maximum capacity continuously.
Oil cooled units immerse the transformer core and windings in dielectric mineral oil. The oil conducts heat from the transformer to the outer tank walls, which then dissipate that heat into the surrounding air. The oil provides two benefits simultaneously — it is a better thermal conductor than air, and it also provides additional electrical insulation for the transformer windings. The result is a unit that maintains safe operating temperatures in conditions that would cause an air cooled unit to run hot and degrade.
The engineering choice between them is not about quality level — it is about matching the cooling capacity of the unit to the thermal demands of the application.
When to Choose Air Cooled
Air cooled servo stabilizers are the correct specification when all of the following conditions apply to your installation:
Ambient temperature stays below 38–40°C in the location where the unit will be installed. This means the unit is indoors, in a ventilated space, and not exposed to outdoor summer temperatures or high-heat industrial environments like foundries, glass plants, or heavy forging areas.
Load is not sustained at maximum continuously. If your machines run in shifts with rest periods, or the stabilizer is protecting a mix of equipment that doesn't all run simultaneously, the unit gets natural thermal recovery time between peak loads.
Capacity is below 100 kVA. Above this threshold, the heat generated in the transformer becomes difficult to manage effectively with air cooling alone in Indian industrial ambient conditions, and oil cooling provides meaningfully better thermal management.
The installation space has adequate airflow. A stabilizer tucked into a corner with no clearance on three sides will overheat even in a cool environment. Air cooled units need clearance around the ventilation grilles — minimum 300–500mm on the sides and top.
If your application meets all four conditions, an air cooled unit is the right choice — it is lighter, lower in initial cost, and requires no oil maintenance over its operational life.
When to Choose Oil Cooled
Oil cooled is the correct specification when any of the following conditions apply:
Continuous 24×7 duty. Textile mills, chemical plants, and critical infrastructure that runs around the clock cannot give an air cooled unit the thermal recovery time it needs. Oil cooling handles continuous duty in Indian ambient conditions that air cooling cannot.
High ambient temperature. If your factory floor regularly exceeds 40°C in summer — which is most factories in Gujarat, Rajasthan, and interior UP and Maharashtra — oil cooling maintains safe transformer temperatures where air cooling would cause the unit to derate or overheat.
Capacity above 100 kVA. At larger capacities, the transformer core generates more heat than air cooling can reliably dissipate in Indian conditions. Oil cooled is the standard specification for large industrial stabilizers in India for this reason.
High inrush current loads. Textile mills, large motor applications, and facilities with frequent motor starts create peak thermal events that oil cooled units absorb more reliably than air cooled equivalents.
Outdoor or semi-outdoor installation. If the unit will be exposed to Indian summer temperatures, high humidity, or monsoon conditions, oil cooling in a sealed IP44 or IP54 enclosure is the appropriate specification.
The common mistake factories make is buying an air cooled unit at the right kVA for a continuous-duty, high-temperature application because it costs less. Within two years they are repairing it. Within four years they are replacing it. The oil cooled unit that cost more upfront would have run the full fifteen years.
The Specification Comparison
| Specification | Air Cooled | Oil Cooled | |---|---|---| | Capacity range | 1 kVA – 200 kVA | 50 kVA – 2000 kVA | | Best ambient temperature | Below 38°C | Up to 50°C+ | | Duty cycle suitability | Moderate duty | Continuous 24×7 | | Enclosure protection | IP21 standard | IP44 standard | | Weight | Lower | Higher | | Initial cost | Lower | Higher | | Maintenance | Minimal | Annual oil check | | Expected lifespan (correct application) | 10–15 years | 15–20 years | | Cooling medium | Forced air | Mineral oil (IS 335) |
Both types use the same servo motor technology, the same copper-wound transformer design, and achieve the same ±1% output regulation. The difference is entirely in how they manage the heat generated during operation — which is why the operating conditions determine the correct choice, not preference or cost alone.
What to Tell Us When You Inquire
When you contact Voltaire for a servo stabilizer quote, we will ask you four questions before we recommend either type:
- What is the installation location — indoor, outdoor, or semi-outdoor?
- What is the approximate ambient temperature in that location in summer?
- How many hours per day will the stabilizer be under significant load?
- What is the total connected load, and does it include large motor starting currents?
If you can answer those four questions — or even give us a rough sense of your operation — we will tell you definitively which cooling type is correct for your application, and why. We do not recommend oil cooled because it has a higher margin, and we do not recommend air cooled because it has a lower price. We recommend what is correct for your specific installation.
Call our engineering team: +91 7060709795 Email: [email protected] Response within 24 hours. Directly from our engineers — not a call centre.
Key Terms
Important Points
Core lessons & insights
Cooling type choice is determined by ambient temperature, duty cycle, and capacity — not preference or cost
Air cooled is correct for moderate-duty, indoor, below-40°C, below-100 kVA applications
Oil cooled is correct for continuous duty, high ambient temperature, above-100 kVA, or outdoor applications
Buying the wrong cooling type for your conditions is the most common cause of early stabilizer failure in Indian factories
Both types deliver ±1% output regulation — the difference is only in thermal management
