CNC Machine Tripping? Here's Why a New Drive Board Won't Fix It

The Drive Board Is Not the Problem

A Fanuc drive board replacement costs anywhere from ₹40,000 to ₹3 lakh depending on the machine. A Siemens or Mitsubishi drive can cost more. The machine runs for two weeks after the replacement, sometimes a month. Then the same fault comes back. The service engineer visits again, issues another report citing "electrical disturbance," and leaves with another invoice.

If this pattern is familiar, you have already been told what the problem is. "Electrical disturbance" is not a diagnosis — it is the service engineer telling you that the machine's power supply is out of specification. What neither the engineer nor the service manual explains is that replacing the drive board does nothing to fix the power supply. The next board you buy will fail for the same reason, on the same schedule.

The CNC machine is not faulty. It is protecting itself from a power supply that is outside the range it was designed to operate in. Understanding why this happens — and what actually fixes it — is what separates workshops that keep spending money on drive boards from workshops that stop the problem entirely.

What Your Fault Codes Are Actually Telling You

CNC controls from Fanuc, Siemens, Mitsubishi, and Haas all log specific fault codes when they trip. These codes are routinely misread as mechanical or drive failures when they are voltage events being reported by the control system.

Fanuc fault codes that are almost always voltage-related:

• ALM 401 / VRDY OFF — Servo drive ready signal lost. The DC bus voltage inside the drive dropped below its minimum threshold. This is an undervoltage event at the drive input, not a drive hardware failure.
• ALM 360 / Heat Sink Overheat — The drive's heat sink is overheating because the drive is drawing excess current to maintain torque against a low input voltage. The symptom is heat. The cause is voltage.
• ALM 300 / Need ZRN — The control lost position reference during a voltage dip and required a zero-return. Not a mechanical fault.

Siemens and Mitsubishi equivalents:

• UV (Undervoltage) faults that appear during spindle acceleration — the motor demands peak current at startup, the voltage sags, the drive trips.
• OC (Overcurrent) faults during normal cutting — the drive is drawing higher current than rated to compensate for low input voltage and triggering its own overcurrent protection.

The pattern across every brand is identical: the machine trips during the highest-load moments — spindle startup, rapid traverse, heavy cuts — because those are when the drive draws peak current, and when an unstable power supply sags worst.

Why Indian Workshop Power Supply Causes This

CNC machine manufacturers specify input voltage tolerance of ±10% for their drives. A Fanuc 31i, Siemens 840D, or Mitsubishi M80 is designed to operate correctly when the incoming supply stays between 373V and 457V on a 415V nominal supply. Outside that range, the drive either derate performance to protect itself or trips entirely.

Industrial grid supply in most Indian estates does not stay within ±10% of nominal. Measurements taken at factory panels in UP, Gujarat, Maharashtra, and Delhi NCR consistently show:

• Voltage swings of ±15% to ±25% during peak industrial hours
• Phase-to-phase imbalance of 5% to 15% between phases
• Voltage dips below 380V when multiple factories in the same estate start production simultaneously
• Transient overvoltage spikes when large motors on the same feeder switch off abruptly

Your CNC drive is doing exactly what it was designed to do — shutting down to protect the IGBT modules and motor windings from operating outside specification. The problem is the supply it is being given to work with.

There is also a hidden cost that accumulates before any trip occurs. Every time the drive operates near the edge of its voltage tolerance — even without a trip — the IGBT modules experience thermal stress beyond their rated design point. This stress is cumulative. A drive that should last eight to ten years on clean power degrades to three to five years under the voltage conditions typical of Indian industrial estates.

The Right Fix — And Why Sizing Matters More Than Brand

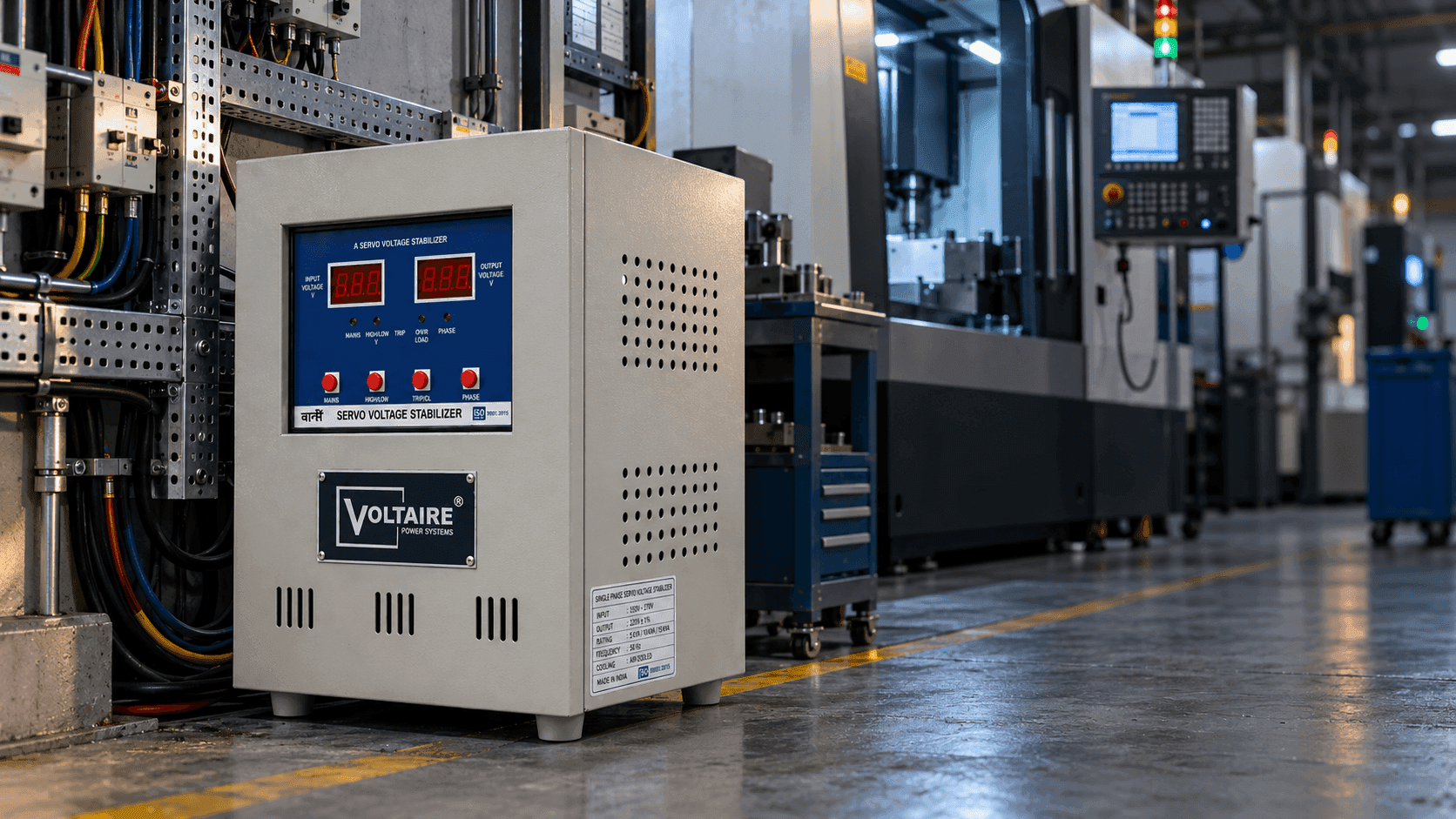

A servo voltage stabilizer corrects incoming voltage continuously — maintaining ±1% output voltage regardless of what the grid delivers. It uses a servo motor to adjust a variable autotransformer in real time, with response times under 20 milliseconds. This is fast enough to correct voltage events before your CNC drive registers a fault.

The sizing mistake that produces a stabilizer that still lets machines trip:

The most common error is sizing the stabilizer against the machine's nameplate kVA and nothing else. A 22 kW spindle motor draws significantly more than 22 kW during startup — typically 3 to 5 times the running load for the first 2 to 3 seconds of acceleration. If your stabilizer is sized only for running load, its output voltage will sag during every spindle startup — which is exactly when your drive is most sensitive to input voltage variation.

The correct approach: calculate total connected load across all motors on the machine (spindle, axis drives, hydraulic pack, coolant pump, auxiliary systems), apply the appropriate starting current multiplier for the highest-inrush motor, add 25–30% thermal headroom, and size to that figure. For a typical 3-axis VMC with a 22 kW spindle and full auxiliary loads, this calculation typically produces a stabilizer specification of 60 to 75 kVA — not the 30 kVA that the spindle nameplate alone would suggest.

A stabilizer sized correctly for your machine will eliminate voltage-related drive faults from the first day of operation. A stabilizer sized incorrectly will let them continue — and because a stabilizer is now present, the cause will be even harder to identify.

Before You Order Another Drive Board

If your CNC is tripping repeatedly and you have already replaced the drive board once or more without a permanent fix, do this first: measure the voltage at your machine's main switch panel with a logging voltmeter — not a spot reading, a logged measurement — across a full production shift including the morning startup period. If you see voltage below 390V or above 440V at any point during production, or phase imbalance greater than 15V between any two phases, your power supply is the cause of your drive faults.

The fix is a correctly sized servo voltage stabilizer. Not a bigger UPS, not a line reactor, not another drive board. A servo stabilizer that maintains ±1% output voltage continuously, sized to the actual starting current demand of your specific machine configuration.
